| Order code: | BC600-1L |
| Guaranty time(months): | 12 |
| Manufacturer: | LST |
 |

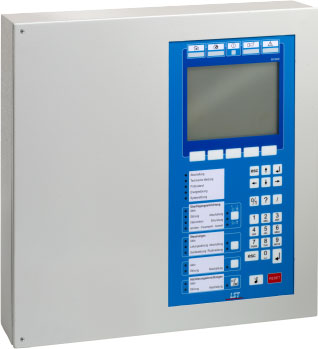

Description:This compact panel is a completely integrated unit for the connection of one loop. On the Central Processing Board ZTB601-1 the power unit with an output current of 2.3A as well as the loop interface with selectable loop procol have already been integrated. In addition, the unit offers the following specific features: The display and operating field that is integrated into the front of the housing consists of a 1/4 VGA graphics display, the LED displays as well as a membrane keypad. The control panel offers a mounting position for an optional expansion module (Fire Brigade Interface FWI600-1, Conventional Detector Interface GIF608-1 or Serial Interface SIF601-x). In order to use it, the Backplane BPL601-1 must be installed in addition. 1 monitored output with an output current of 500mA allows the connection of an alarming device. 2 auxiliary inputs and 8 open-collector outputs are available for general control tasks. At the bottom of the housing, there is space for stand-by batteries with 2 × 12V/max. 22Ah.
